IPMon+

IPMon+ is the graphical version of IPMon, and also offers additional functionality not available in the command-line version. IPMon+ shows all TCP, UDP, ICMP and ARP connection endpoints between the local computer (default) and remote hosts, including the amount of data being transmitted, current transfer rate and threat intel. IPMon+ also supports promiscuous mode.

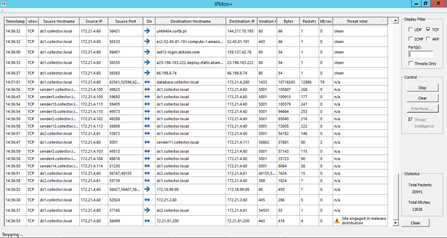

ipmonplus_main_small

IPMon+ is primarily intended for:



Troubleshooting network connections

Revealing incoming and outgoing network traffic

Discovering traffic to potentially malicious hosts



IPMon+ monitors all network traffic on the specified interface, and shows:



which hosts communicate with the local host

how much data is being transferred between IP connection

the direction of traffic

which UDP/TCP ports are used in the communication



If IPMon+ runs in promiscuous mode then traffic from hosts not involved with local traffic is displayed as well if the switch is configured to send all traffic.



More information:



Usage

Screenshots



Requirements

Npcap packet sniffing library (recommended) or WinPcap network driver



info_24

Since WinPcap is no longer under active development, it's recommended to install the Npcap driver instead.



When installing, make sure that Install Npcap in WinPcap API-compatible Mode is checked.



Interface

Graphical



Files

ipmonplus(.exe)



Supported Platforms

Windows

Linux (NTToolkit v2.0 only)

FreeBSD (NTToolkit v2.0 only)

OS X (NTToolkit v2.0 only)
